30mm 31.75mm YG6 Tungsten Carbide Ball / TC Balls High Hardness

Product Categories

Shandong JinNai International Trade Co., Ltd.

Contact Now

30mm 31.75mm YG6 Tungsten Carbide Ball / TC Balls High Hardness

Brand Name : JN

Model Number : 30mm 31.75mm

Certification : ISO SGS

Place of Origin : China

MOQ : 500kg

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 10tons per month

Delivery Time : 7-15 days

Packaging Details : Ploy bag+25kg carton box+1000kg wooden box

Product Name : High Density TC steel ball

Temperature : 400℃

Density : 14.9

Grade : YG6 YG6X YG8 YG8X YG10

Feature : high precision,excellent wearability

Usage : for bearing,valve,hardware Industry

Price : Negotiable

Contact Now

30mm 31.75mm Hardness YG6 Carbide Balls TC Balls Tungsten Carbide Balls

Tungsten Carbide Balls

1) Tungsten Carbide Ball is very wear resistant, with some abrasion tests showing it at 30 times hard steel.;

2) It has good corrosive resistance in many environments;

3) It has good long-term dimensional stability which makes a good material for gage applications;

4) Tungsten Carbide is extremely hard, this high

hardness makes tungsten carbide balls a good choice for ball-sizing and they provide premier results

as components of kinematic couplings. Its good performance at temperatures up to degree 427°C

make it a good choice in high temperature applications.

30mm 31.75mm YG6 Tungsten Carbide Ball / TC Balls High Hardness

Product Name	Tungsten Carbide balls/Alloy ball
Specification	Φ0.8mm-Φ80.0mm
Trademark	YG6X/YG8/YG6/YG10/YG13
Material	Material : Cobalt tungsten alloy and Tungsten nickel alloy Cobalt tungsten alloy ball : YG6 , YG6X , YG8 , YG10 , YG13 Tungsten nickel alloy ball : YN6 , YN8 , YN10 , YN12
Grade	G10-G100
Feature	Hardness: 90-92 degrees hardness, density: 14.95 g/cm3, bending strength: 2750 N/mm2, excellent wear resistance and toughness.
Applications	Subtle bearings, precision sealing, measurement tools, squeeze the hole, stamping steel / brass stampings.
Chemical composition	WC	Co
	94%	6%

Physical / mechanical / thermal / electric / magnetic properties

Property	Symbol	U.o.M.	Type	Notes	Values
Density	δ	[g/cm3]	Physical	Room temp.	14.82
Young's modulus	E	[GPa]	Mechanical	-	650
Specific heat	c	[J/kg-K]	Thermal	Room temp.	220
Coefficient of linear thermal expansion	α	[10^-6/ºC]	Thermal	(ΔT=0-100°C)	5.2
Thermal conductivity	λ	[W/(m·K)]	Thermal	Room temp.	80.0
Electric resistivity	ρ	[Ωm10^-9]	Electric	-	200
Relative magnetic permeability	µ	-	Magnetic	Slighlty ferrom.	max 12

Carbide Alloy Steel Ball Application

30mm 31.75mm YG6 Tungsten Carbide Ball / TC Balls High Hardness

About Company

Our company specializes in producing 0.3mm-76.2mm tungsten alloy ball of various materials,

customized non-standard (for the convenience of customers,

we developed the production process of the alloy ball from the order of 3, fills the domestic blank),

accuracy in the G10 - G100, products are widely used in bearings, instruments, meters,

various hardware punching, valves, grinding, hardness tester, pump valves, petroleum, chemical, and metering equipment.

Our company has several technical and research personnel who can diagnose customers

and provide more professional services.

Product Tags:

tungsten carbide beads

tungsten alloy ball

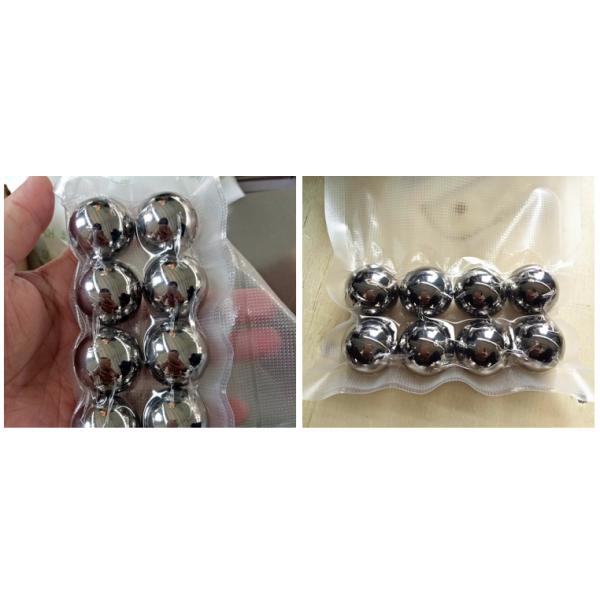

30mm 31.75mm YG6 Tungsten Carbide Ball / TC Balls High Hardness Images
